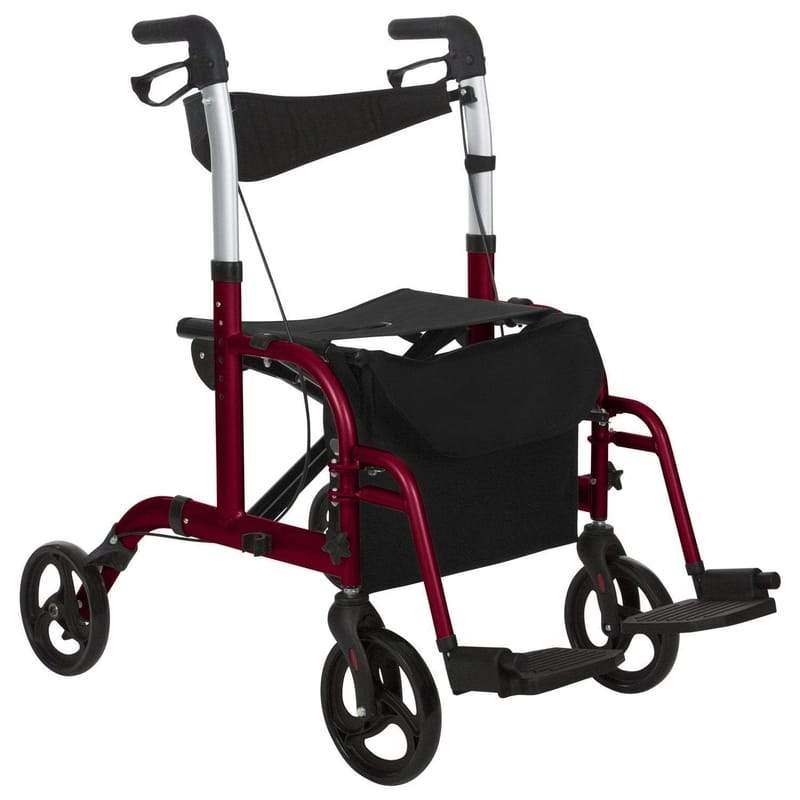

Wheelchair Rollator

Uses:

• Mobility aid

Dimensions:

• Base when open: 24” by 40”
• Adjustable Height: 33.25” to 38.25”
• Wheels: 8”
• Folded: 8.25” by 40”
• Seat dimensions: 18” x 12” x 21.75”

How To Assemble:

• Open the wheelchair rollator frame until the seat is locked into position.
• Insert the height adjustable handles into the frame, ensuring each snap button is visible.
• Insert the two rear wheels into the frame, ensuring each snap button is securely locked in the desired position.
• Insert front wheels into the frame, ensuring the holes on each piece are aligned.
• Insert a screw into each hole and attach with a washer and a star bolt, so that the star bolt is oriented on the outside of the Wheelchair/Rollator.
• Attach the footrests.
• Attach storage bag to the frame with the fastener loops.

How To Lock The Footrest In Place:

• Fold the footrest down.
• Gently pull the footrest around to the front.
• Push the footrest bar into the locking clip securely.

Braking:

• Walker is equipped with a dual wheel braking system
• To adjust the brakes, turn cable adjuster located on the handbrake

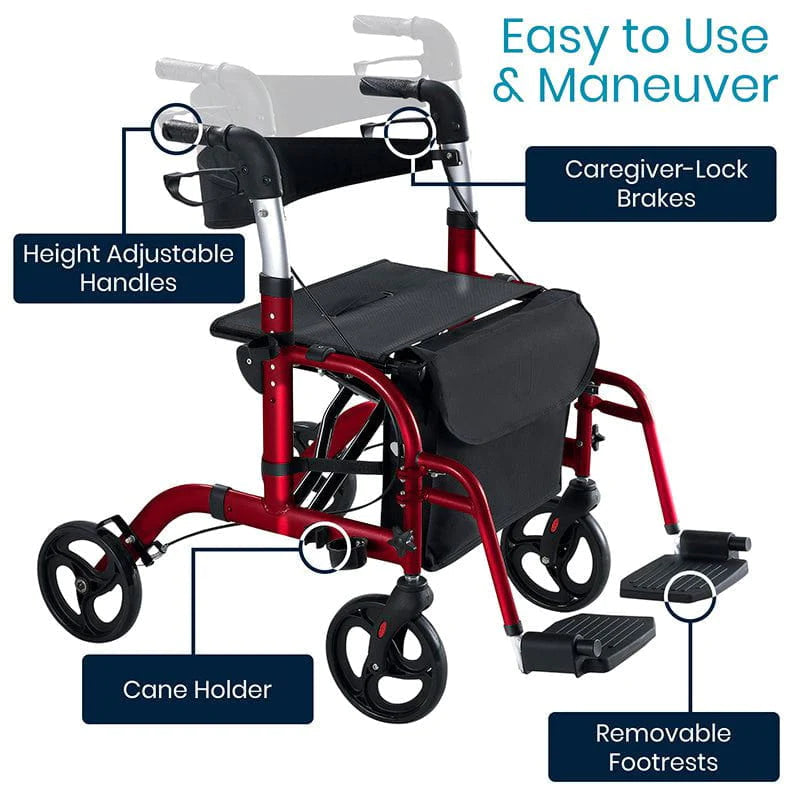

Adjusting Handle Height:

• Handle height can be adjusted in 1” increments with the push pins located on the sides of the rollator.

Care Instructions:

• Wipe down with a damp cloth and disinfectant solution as necessary.
• Dry immediately with a lint-free cloth.

What's Included:

• Hybrid Wheelchair Rollator
• Detachable Storage Bag
• Lifetime Guarantee
